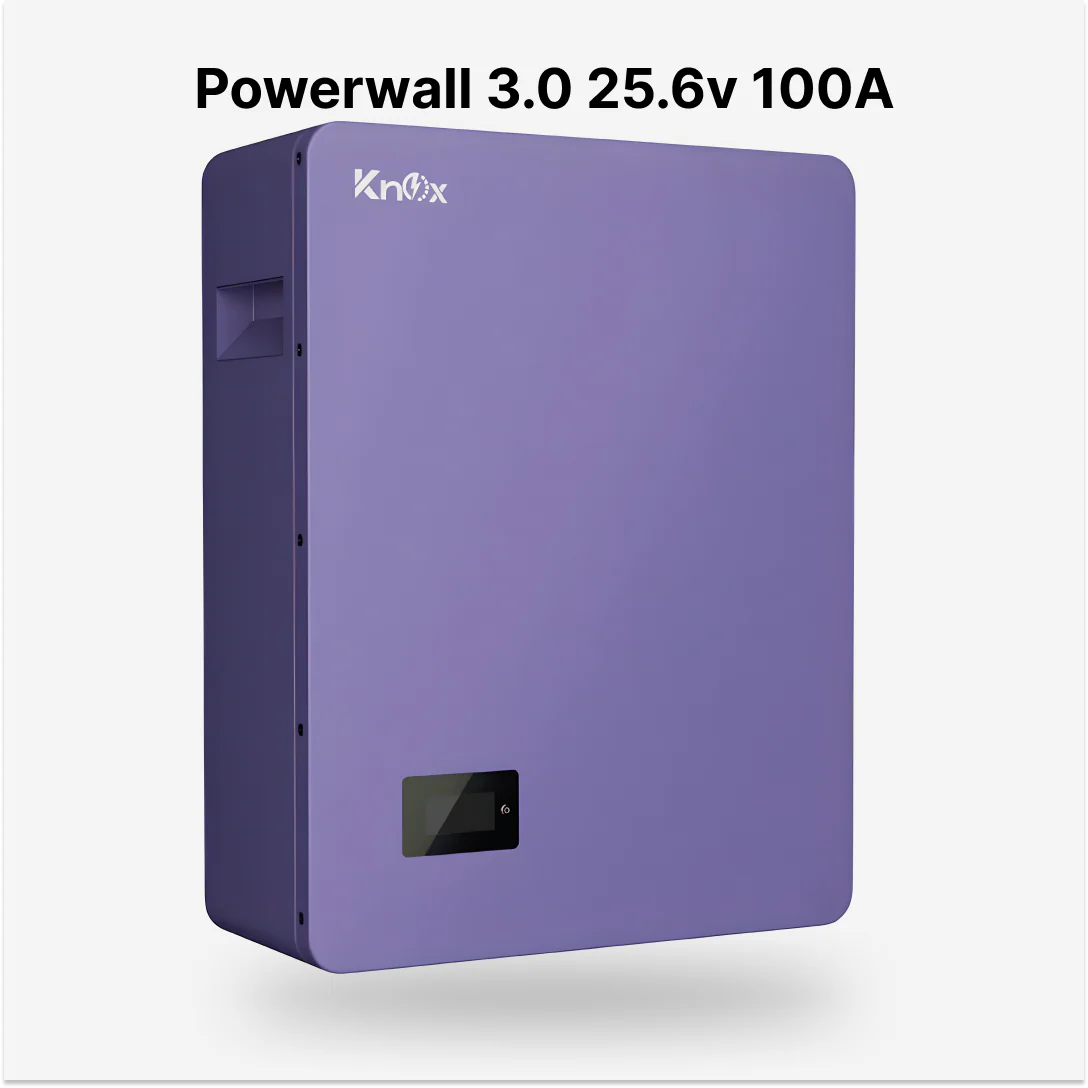

Knox Powerwall 3.0 25.6v 100Amp Lithuim Battery

Knox Powerwall 3.0 LIO 2.56-IP20 – Advanced LiFePO4 Lithium Battery Model: LIO 2.56-IP20 Type: Wall-Mounted Lithium Iron Phosphate (LiFePO4) Battery Capacity: 2.56kWh | 25.6V | 100Ah Grade: A-Grade Prismatic Cells Overview The Knox Powerwall 3.0 LIO 2.56-IP20 is a next-generation wall-mounted lithium battery built using premium-grade prismatic LiFePO4 cells. Designed for residential solar systems, backup applications, and hybrid inverters, this unit ensures maximum safety, lifespan, and performance. With over 6000 cycles at 80% DOD, built-in BMS, and an informative LCD display, it delivers consistent power with minimal maintenance. Key Features A-Grade Prismatic LiFePO4 Cells – Reliable and long-lasting 6000+ Cycle Life @80% DOD (0.5C, 25°C) Built-in BMS – Overcharge, over-discharge, short circuit, high/low temp protection LCD Display – Real-time monitoring of SOC, voltage, alarms, and temp Cell Balancing Function – Improved battery health and cycle life Sturdy Metal Enclosure – Enhanced heat dissipation and fire resistance Certified Safe – UN38.3, MSDS approved Scalable System – Max 2 in series, 4 in parallel Communication Support – RS485 port Wall-Mounted Design – Easy installation, space-saving Technical Specifications Model LIO 2.56-IP20 Battery Type LiFePO4 (Lithium Iron Phosphate) Nominal Voltage 25.6V Nominal Capacity 100Ah Energy 2560Wh (2.56kWh) Pack Configuration 8S1P Max Charge Voltage 28.8V Discharge Cut-off Voltage 20.8V Max Charge Current 100A Max Discharge Current 100A Peak Discharge Current 120A Recommended DOD 80% Cycle Life >6000 cycles @ 80% DOD Display LCD (4-line system info) Communication RS485 Protection IP20 Mounting Type Wall-Mounted Operating Temperature Charge: 0°C55°C / Discharge: -20°C60°C Optimal Storage Temp 5°C ~ 35°C Relative Humidity 40% ~ 80% Terminal M6 Dimensions (mm) 350 x 180 x 450 Net Weight 25.1 ± 0.5 kg
