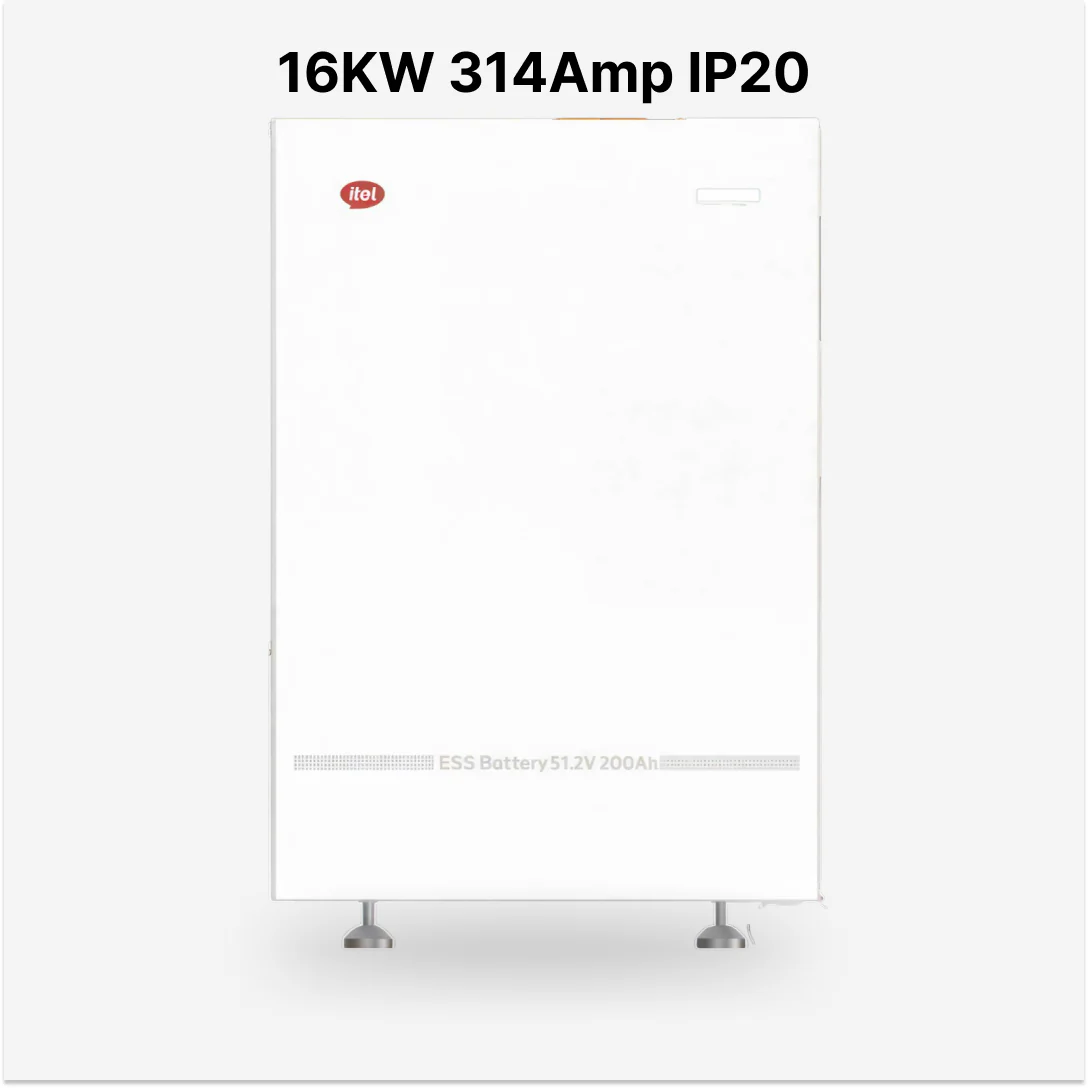

Itel 16KW 314Amp IP20 Lithium Battery

Main Parameters Battery Type: LiFePO4 Nominal Voltage: 51.2V Nominal Capacity: 314Ah Nominal Energy: 16kWh Operating Voltage Range: 43.2 – 57.6V Max. Parallel Units: 32 Charge Parameters Max. Continuous Charge Current: 157A Peak Charge Current: 175A @ 1s Discharge Parameters Max. Continuous Discharge Current: 157A Peak Discharge Current: 175A @ 3s Max. Discharge Power: 16kW Recommended Depth of Discharge (DOD): 90% Cycle Life >6000 cycles @25°C 0.5C charge / 0.5C discharge 80% DOD 80% End of Life (EOL) Communication CAN 2.0 / RS485 General Specifications Dimensions (D × W × H): 230 × 548 × 840 mm Net Weight: 120 kg Operating Temp (Charge): 0°C to +60°C Operating Temp (Discharge): -20°C to +60°C Recommended Operating Temp: 15°C to +35°C Storage Temperature: 0°C to +35°C Humidity: 10% – 95% Max Altitude: 2000 m Ingress Protection: IP20 Cooling Method: Natural Cooling Shell Material: Metal LED Display: 6 LED (SOC) + 2 LED (Run & Alarm) Certification: IEC62619 / UN38.3 / MSDS / DGM Protection Features Circuit Breaker: Yes Voltage Protection: Yes Current Protection: Yes Temperature Protection: Yes Short Circuit Protection: Yes
