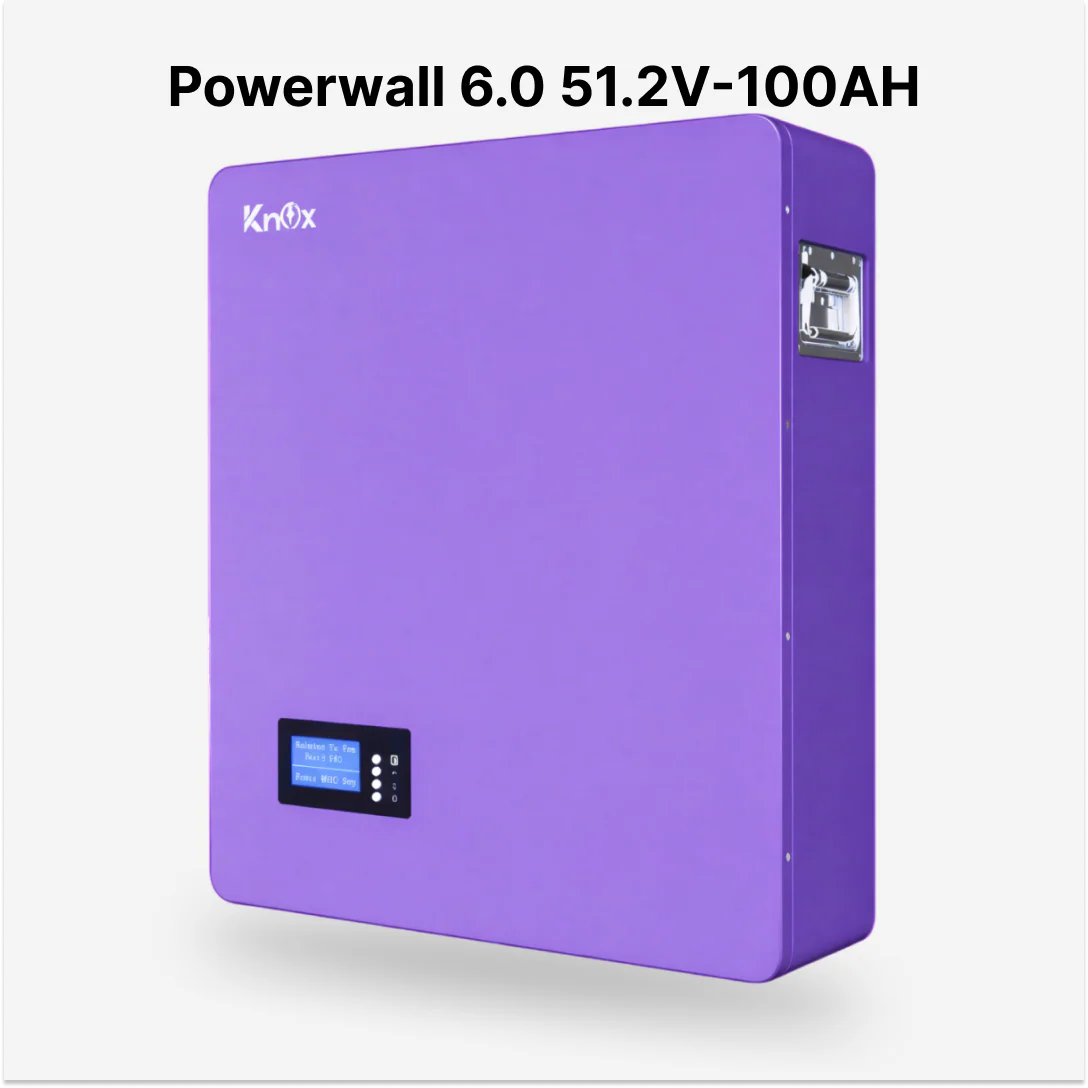

Knox Powerwall 6.0 51.2V-100AMP LED Model Lithium Battery

Powerwall 6.0 | LIO 5.20-IP20 Lithium-ion Battery LED Model 51.2V 100Ah | 5.12kWh | LiFePO₄ | Wall-Mounted Energy Storage The LIO 5.20-IP20 is a high-performance lithium-ion battery designed for residential and small commercial energy storage systems. With A-grade prismatic LiFePO₄ cells and a robust design, it ensures long life, superior safety, and consistent output. This wall-mounted battery offers 5.12kWh of energy, supports up to 8 units in parallel, and is ideal for on-grid, off-grid, and hybrid setups. A smart BMS with multiple protections, LCD display, and universal communication protocols (RS485/RS232/CAN) makes integration with various inverters smooth and reliable. It's engineered for easy installation, silent operation, and dependable energy performance across a wide range of environmental conditions. Key Features Energy Capacity: 5.12kWh (51.2V, 100Ah) Cell Chemistry: A-grade Prismatic LiFePO₄ Cycle Life: Over 6000 cycles at 80% DoD (25°C, 0.5C) Charge/Discharge Current: Max: 100A continuous Peak: 120A (2 sec) Battery Pack: 16S1P configuration Display: Low-power LED screen with long-range visibility Smart BMS Protections: Overcharge, over-discharge, over/low temperature, over current, and short-circuit Cell Balancing Function: Integrated Metal Housing: Improves heat dissipation and system safety Parallel Connection: Supports up to 8 packs Technical Specifications Model LIO 5.20-IP20 Battery Type LiFePO₄ Nominal Voltage 51.2V Nominal Capacity 100Ah Total Energy 5120Wh Configuration 16S1P Max Charge Voltage 57.6V Discharge Cut-off Voltage 41.6V Max Charge/Discharge Current 100A Peak Discharge Current 120A @ 2s Recommended Discharge Current 100A Recommended Depth of Discharge 80% Cycle Life >6000 (80% DoD @ 25°C, 0.5C) Display LED Communication Ports RS485, RS232, CAN Mounting Wall-mounted Enclosure Rating IP20 Terminal Type M6 Dimensions (L×W×H) 533 × 500 × 150 mm Weight 45.1 ± 0.5 kg Operating Temp. (Charge) 0°C to +55°C Operating Temp. (Discharge) -20°C to +60°C Storage Temp. (Optimal) 5°C to 35°C Humidity Range 40% – 80% RH Certifications UN38.3, MSDS
