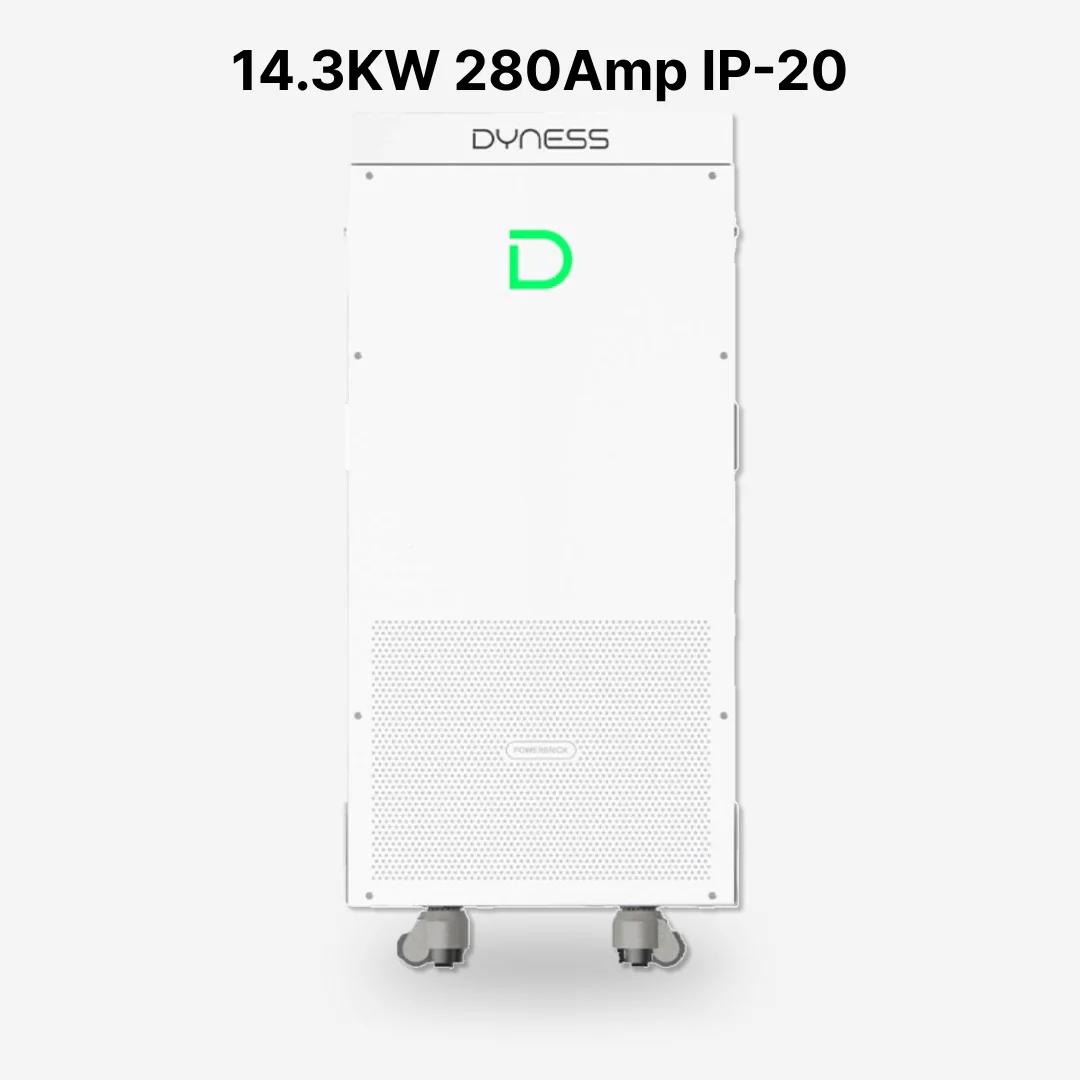

Dyness PowerBrick 14.3KW 51.2v 280A Lithium Battery

Dyness PowerBrick – 51.2V 280Ah Lithium Battery System Detailed Technical Specifications General Overview Model: PowerBrick Brand: Dyness Battery Type: LiFePO₄ (Lithium Iron Phosphate) Application: Residential energy storage (low-voltage systems) Design: All-in-one floor-standing unit with wheels Scalability: Supports up to 50 units in parallel Energy & Capacity Nominal Battery Energy: 14.336 kWh Nominal Voltage: 51.2 V Nominal Capacity: 280 Ah Depth of Discharge (DoD): 95% Charge & Discharge Parameters Recommended Charge/Discharge Current: 140 A (0.5C) Maximum Charging Current: 200 A Maximum Discharging Current: 200 A Peak Discharge Current: 300 A (2 mins @ 25°C) Cycle Life & Performance Cycle Life: ≥8000 cycles Expected Lifespan: ~10 years Efficiency: High efficiency for stable long-duration backup Communication & Smart Features Communication Protocols: CAN RS485 Smart Features: Built-in WiFi module Mobile App monitoring (OTA updates supported) Real-time system diagnostics Safety & Protection Protection Level: IP20 Built-in Safety Systems: Intelligent BMS (fast reaction within 5 seconds) Aerosol fire extinguishing system Certifications: UN38.3 CE EMC IEC62619 Environmental Conditions Charging Temperature Range: 0°C to +55°C Optional Low Temp Charging: Down to -20°C Discharging Temperature Range: -20°C to +55°C Humidity: Standard indoor operating conditions Physical Specifications Dimensions (W × D × H): 435 × 233 × 857 mm Net Weight: 114 kg Mobility: Wheels included (easy installation & movement) Cooling & Installation Cooling Method: Natural convection Installation Type: Floor-standing (no wall mount required) Ease of Installation: Lightweight design (60% less volume vs traditional systems) System Compatibility Compatible with major inverter brands: SMA Victron Energy GoodWe Growatt Solis Luxpower Deye APsystems Solplanet
