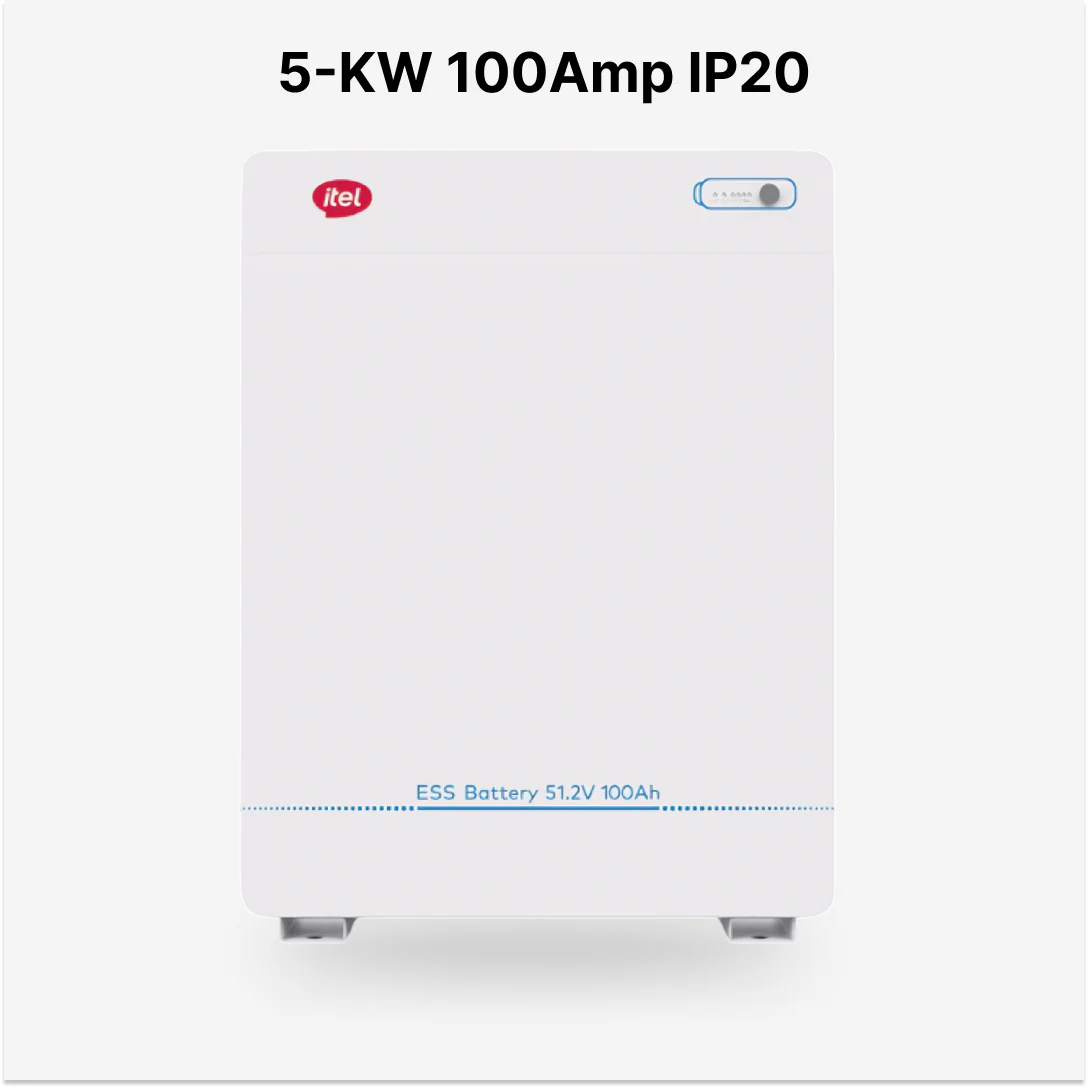

Itel 5KW 51.2v 100Amp IP-20 Lithium Battery

Itel IPL-51100 LiFePO₄ Battery (5.12 kWh) Basic Product Information Specification Details Model IPL-51100 Brand itel Battery Chemistry LiFePO₄ (Lithium Iron Phosphate) Battery Type Solar energy storage battery Application Residential / commercial solar backup Design Life 10 years Cycle Life 6000+ cycles Electrical Specifications Specification Value Nominal Voltage 51.2 V Nominal Capacity 100 Ah Nominal Energy 5.12 kWh Operating Voltage Range 40 V – 58.4 V Cut-off Charging Voltage 58.4 V Cut-off Discharge Voltage 40 V This means the battery stores 5.12 kilowatt-hours of energy. Example: 1 battery ≈ 5 units of electricity Charging Specifications Specification Value Standard Charging Current 50 A Max Continuous Charging Current 100 A Cut-off Charging Current 2 A The battery automatically stops charging when voltage reaches the safety limit. Discharging Specifications Specification Value Standard Discharge Current 100 A Max Continuous Discharge Current 100 A Max Pulse Discharge Current 150 A This allows the battery to handle high-power loads like AC, motors, or pumps. Physical Specifications Specification Value Dimensions 450 × 510 × 153 mm Weight 50 kg Shell Material Metal casing Cooling Natural cooling The metal body improves durability and heat dissipation. Communication & Integration Specification Value Communication Ports RS485 / CAN / RS232 Display LED indicators These communication ports allow the battery to connect with hybrid solar inverters and battery management systems (BMS). Expandability Specification Value Parallel Connection Up to 15 batteries Example system sizes: Batteries Total Storage 1 5.12 kWh 2 10.24 kWh 4 20.48 kWh 10 51.2 kWh This makes it scalable for homes or businesses. Environmental Specifications Specification Value Charging Temperature 0°C to 55°C Discharging Temperature -20°C to 60°C Humidity 10% – 95% Maximum Altitude 2000 m The battery can operate in very hot and cold environments. Protection & Safety Features The battery includes multiple protection systems: Protection Feature Current limiting Pre-charge protection Over-charge protection Over-discharge protection Voltage cut-off protection Temperature protection These protect both the battery and connected inverter system. Protection Rating Specification Value IP Rating IP20 Meaning: Protected from solid objects Not waterproof So it should be installed indoors. Certifications The battery complies with international safety standards: Certification IEC62619 UN38.3 MSDS DGM These certifications confirm safety for transport and operation.
