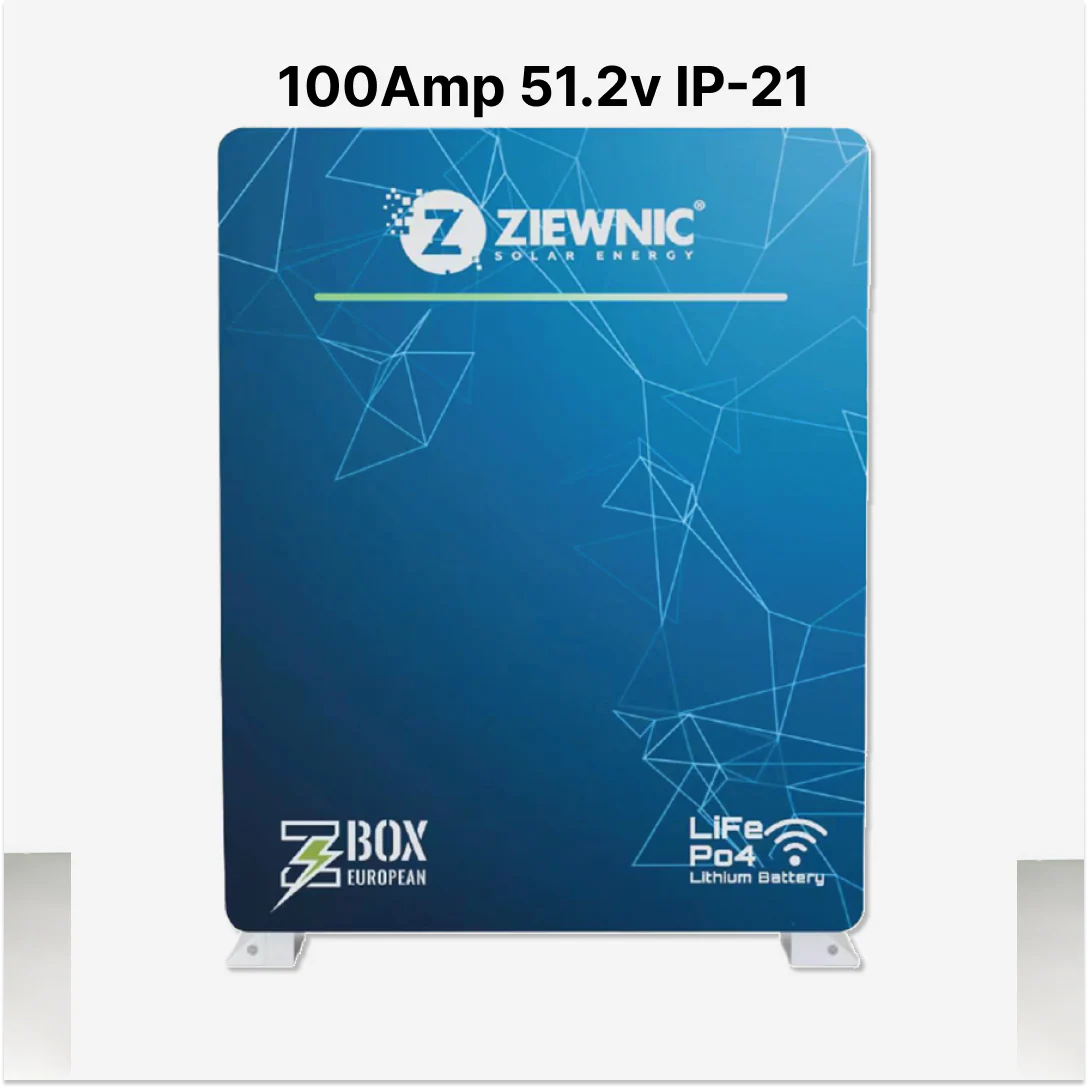

Ziewnic Box European 100Amp 51.2v Lithium Battery

Z-BOX 100Ah – 51.2V (European Series) General Information Model: Z-BOX 100Ah – 51.2V Design: European Standard – Wall Mounted / Floor Standing Battery Type: LiFePO4 Cycle Life: >8000 Cycles @ 80% DOD Warranty: 10 Years IP Rating: IP21 Max Parallel Support: Up to 16 Units Built-in 100A Smart BMS Built-in Wi-Fi & Bluetooth RGB LED Capacity Indicator App Monitoring: GenixGreen / Ziewnic (iOS & Android) Electrical Specifications Nominal Specifications Nominal Voltage: 51.2V Nominal Capacity: 100Ah Nominal Energy: 5120Wh Standard Charge Voltage / Power: 56.0V / 5600W Voltage Range Operating Voltage Range: 44.8V – 58.4V Battery Full Voltage: 58.4V Cut-off Voltage: 44.8V Charging & Discharging Max Continuous Charge Current: 100A Max Continuous Discharge Current: 100A Continuous Rate: 1C / 1C Charging Temperature Range: 0°C to 65°C Discharging Temperature Range: -20°C to 65°C Protection (Smart BMS) Over Charge Protection Over Discharge Protection Over Current Protection Short Circuit Protection Over Temperature Protection Communication Built-in Wi-Fi Module Bluetooth Optional: RS485 RS232 CAN Storage Storage Temperature: 0°C – 30°C Storage Duration: 3 Months at 25°C Physical Specifications Dimensions (L × W × H): 480 × 600 × 150 mm Gross Weight: 48 KG Installation: Wall Mounted / Floor Standing RGB Status Indicator Common Key Salient Features First Time in Pakistan – European Standard Battery 8000 Life Cycles LiFePO4 Superior Safety Performance Brand Cells – Strong & Reliable 100A Smart BMS 1C / 1C Continuous Charge & Discharge Supports 16 Units in Parallel Wi-Fi Remote Monitoring via App Cloud Control Platform Suitable for Solar & Hybrid Inverters
