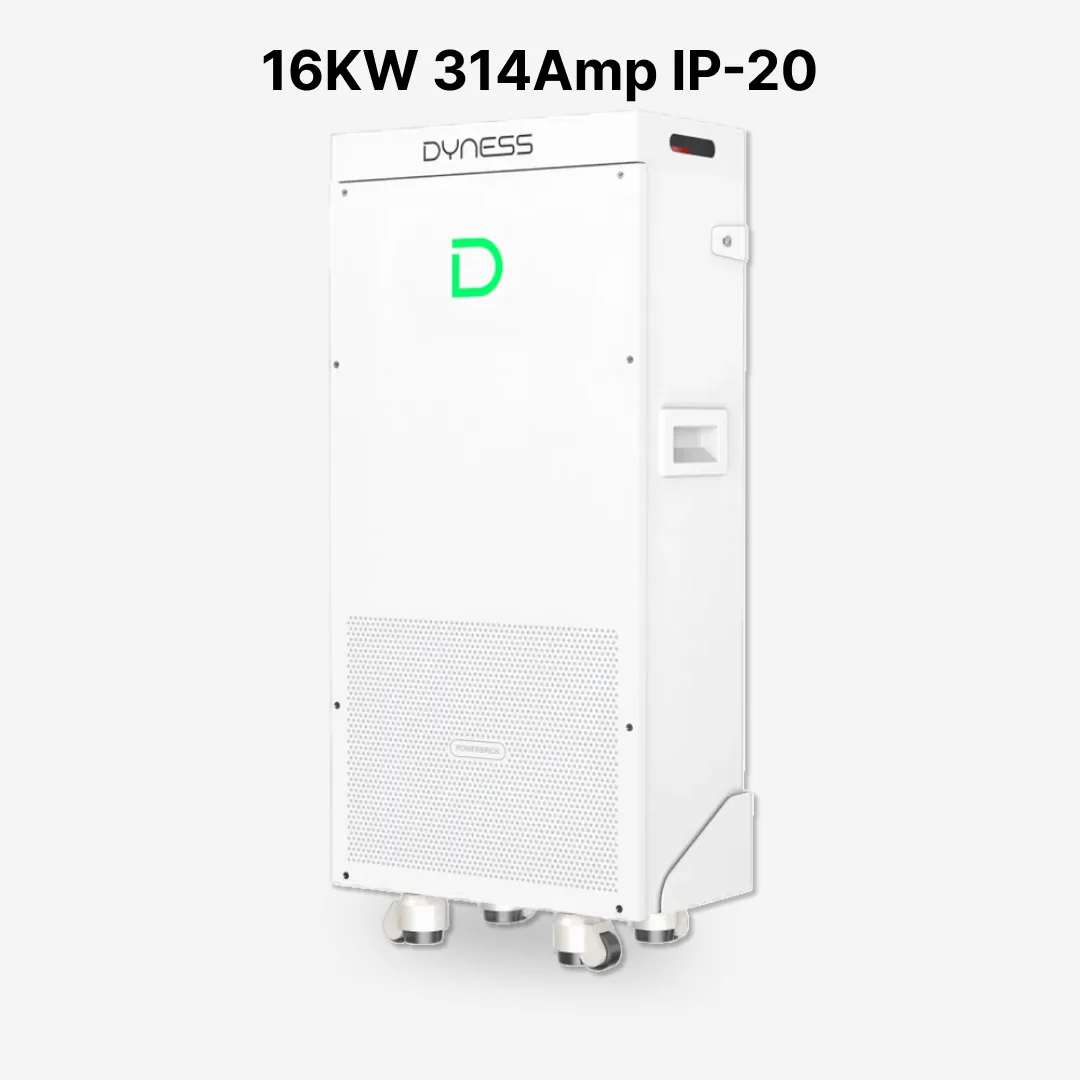

Dyness PowerBrick Max 16KW 51.2v 314A Lithium Battery
by Dyness
PKR 700,000
Shipping You have to pay Partial Payment for order confirmation Estimated Shipping Time: 24 to 72 Hours 100% Original & Official Product
- Free consultation included
- Installation available on request
- WhatsApp support, typical reply < 15 min
About this product
PowerBrick Max:
Battery Type: LiFePO4 (LFP)
Battery Capacity: 16.07kWh
Usable Capacity: 15.27kWh
Voltage: 51.2V
Capacity: 314Ah
Working Voltage: 44.8V – 57.6V
Charging / Power
Recommended Charge & Discharge: 140A
Max Charge Current: 200A
Max Discharge Current: 200A
Peak Discharge Current: 300A for 2 minutes
Recommended Power: 7.168kW
Max Charge Power: 10.24kW
Max Discharge Power: 10.24kW
Battery Performance
DOD: 95%
Cycle Life: 8000+ cycles
Warranty: 10 Years
Temperature
Charging Temperature: 0°C to 55°C
Optional Self-Heating: -20°C to 55°C
Discharge Temperature: -20°C to 55°C
Build
Weight: 116kg
Size: 435 × 233 × 857 mm
Protection Rating: IP20
Connectivity
Communication: CAN / RS485
WiFi + APP Support
Safety
Built-in aerosol fire extinguisher
Installation
Floor Mount
Wall Mount
Expansion
Supports up to 50 batteries in parallel
Compatible Inverters
Deye
Solis
GoodWe
Growatt
Luxpower
Victron
SMA
APsystem
Certifications
UN38.3
IEC62619
