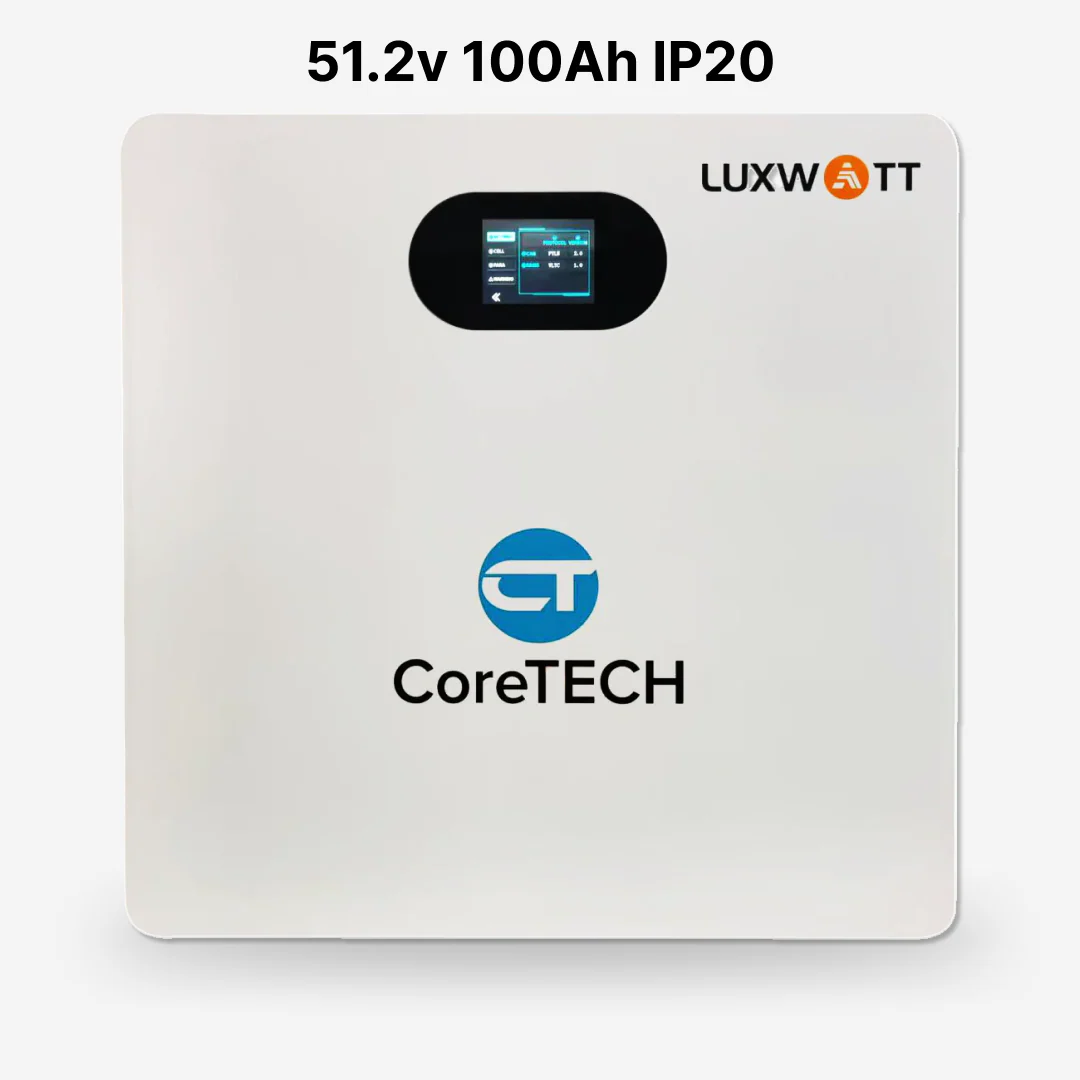

CoreTech Luxwatt 5kW 100Ah 51.2v Lithium Battery

CoreTECH ES-BOX42 – 5.12kWh Wall-Mounted Lithium Battery Detailed Technical Specifications General Overview Brand: CoreTECH (LUXWATT) Model: ES-BOX42 Battery Type: LiFePO₄ (Lithium Iron Phosphate) System Type: Wall-Mounted Energy Storage Battery Application: Residential Solar Storage Energy & Capacity Rated Energy: 5.12 kWh Rated Capacity: 100 Ah Nominal Voltage: 51.2 V Working Voltage Range: 44.8 – 56.8 V Depth of Discharge (DoD): 80% – 90% Performance & Current Continuous Charge/Discharge Rate: 1C Max Charge/Discharge Current: 100 A Cycle Life & Durability Cycle Life: ≥6000 cycles (at 80% DoD) Stable long-term performance Communication & Smart Features Interfaces: USB RS485 CAN Optional Features: WiFi Bluetooth Display: 3.2-inch touchscreen Scalability Parallel Support: Up to 16 batteries Operating Conditions Charging Temperature: 0°C to 55°C Discharging Temperature: -20°C to 55°C Humidity: 5% – 85% RH Physical Specifications Dimensions (L × W × H): 485 × 480 × 155 mm Weight: ≤45 kg Cooling & Protection Cooling Method: Natural cooling Ingress Protection: IP20 Protection Features Low-voltage safety protection Residual current monitoring Overvoltage protection Overload protection Short circuit protection Advanced BMS system Surge Protection supported Certifications ROHS UN38.3 MSDS
