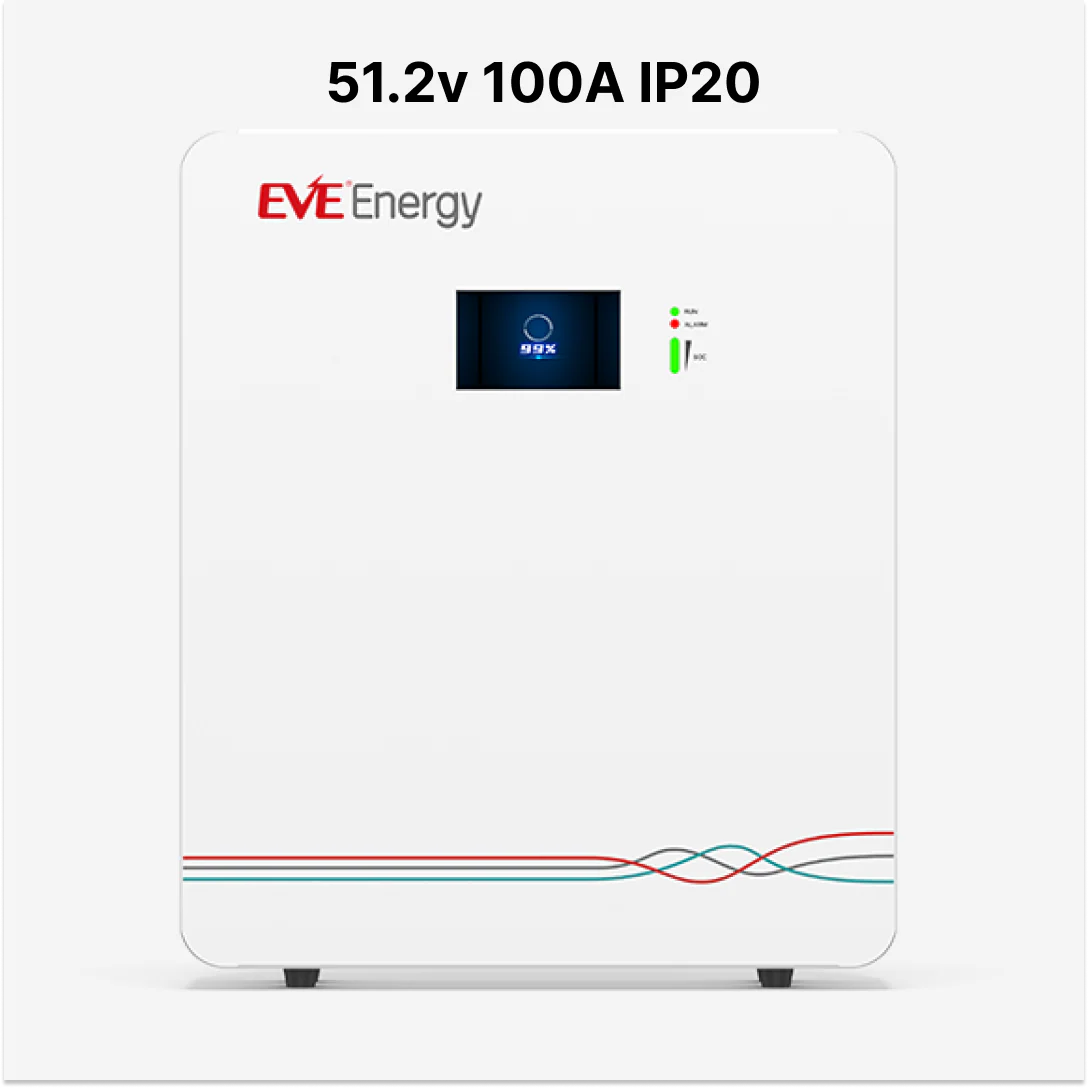

Eve Energy LVI 2.0 WallMount 5KW 51.2v 100Ah Lithium Battery

EVE-LVW-2.0 – Residential Wall-Mounted Lithium Battery System Detailed Technical Specifications General Overview Model: EVE-LVW-2.0 System Type: Residential Wall-Mounted Battery Battery Chemistry: LiFePO₄ (LFP – Lithium Iron Phosphate) Design: Slim wall-mounted / floor-standing Application: Home energy storage systems Energy & Capacity Rated Energy: 5.12 kWh Rated Capacity: 100 Ah Nominal Voltage: 51.2 V Depth of Discharge (DoD): 90% Cell Configuration Configuration: 1P16S Cell Type: Long-life LFP cells Charge & Discharge Parameters Standard Current: 50 A Max Discharging Current: 100 A Optimized for daily residential usage Cycle Life & Durability Cycle Life: ≥6000 cycles Design Life: Up to 15 years High thermal stability & long lifespan Communication & Integration Communication Interfaces: RS485 (×2) CAN (×2) Compatible Inverters: Knox GoodWe Growatt Pylontech Deye Solis Itel Scalability Parallel Support: Up to 15 units Flexible expansion for higher storage capacity Safety & Certifications Safety Features: Dual-layer protection (Air switch + Intelligent BMS) Strong metal casing Certifications: CE UN38.3 IEC62619 UL9540A UL1973 (design compliant) Environmental Conditions Humidity: ≤70% (non-condensing) Recommended Use: Indoor installation Physical Specifications Dimensions (H × W × D): 560 × 493 × 173 mm Weight: 50 kg (±2 kg) Design: Slim profile (137mm visual thickness look) Cooling & Protection Cooling Method: Passive (natural cooling) Ingress Protection: IP20 Installation Options Wall-mounted Floor-mounted (vertical stacking possible)
